  • Solar Skid
  • Crimson Group
Login to add this product to your order

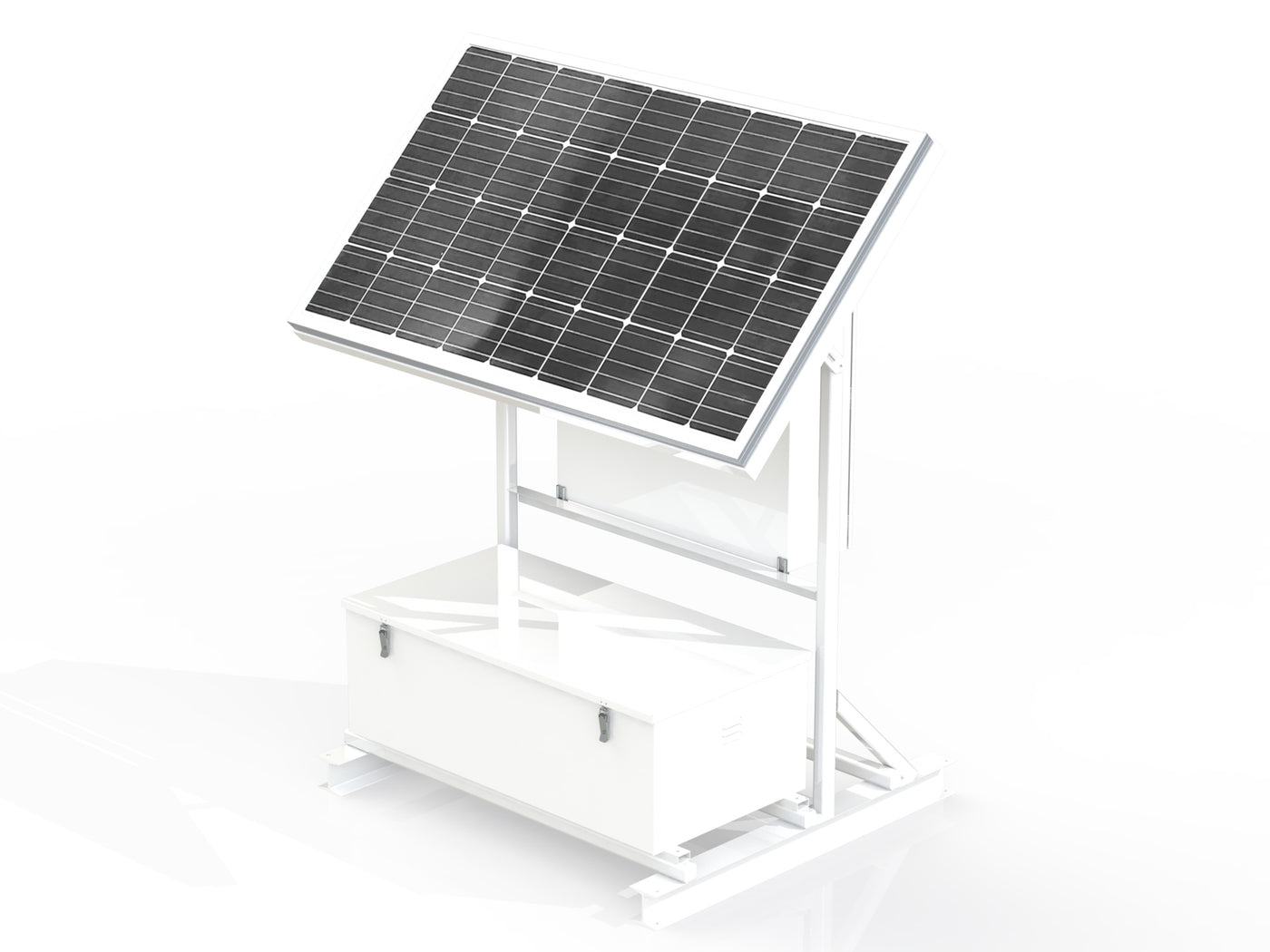

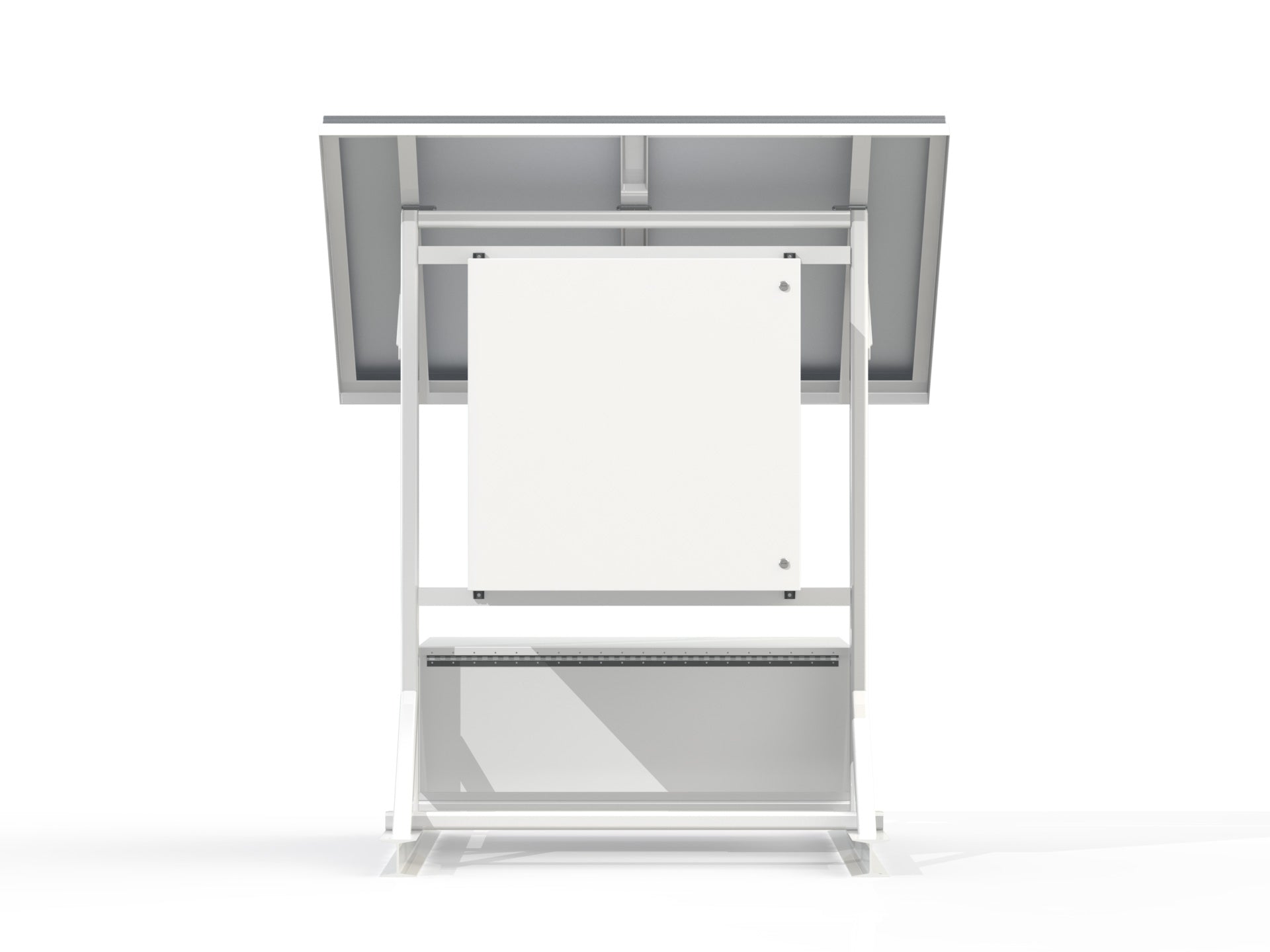

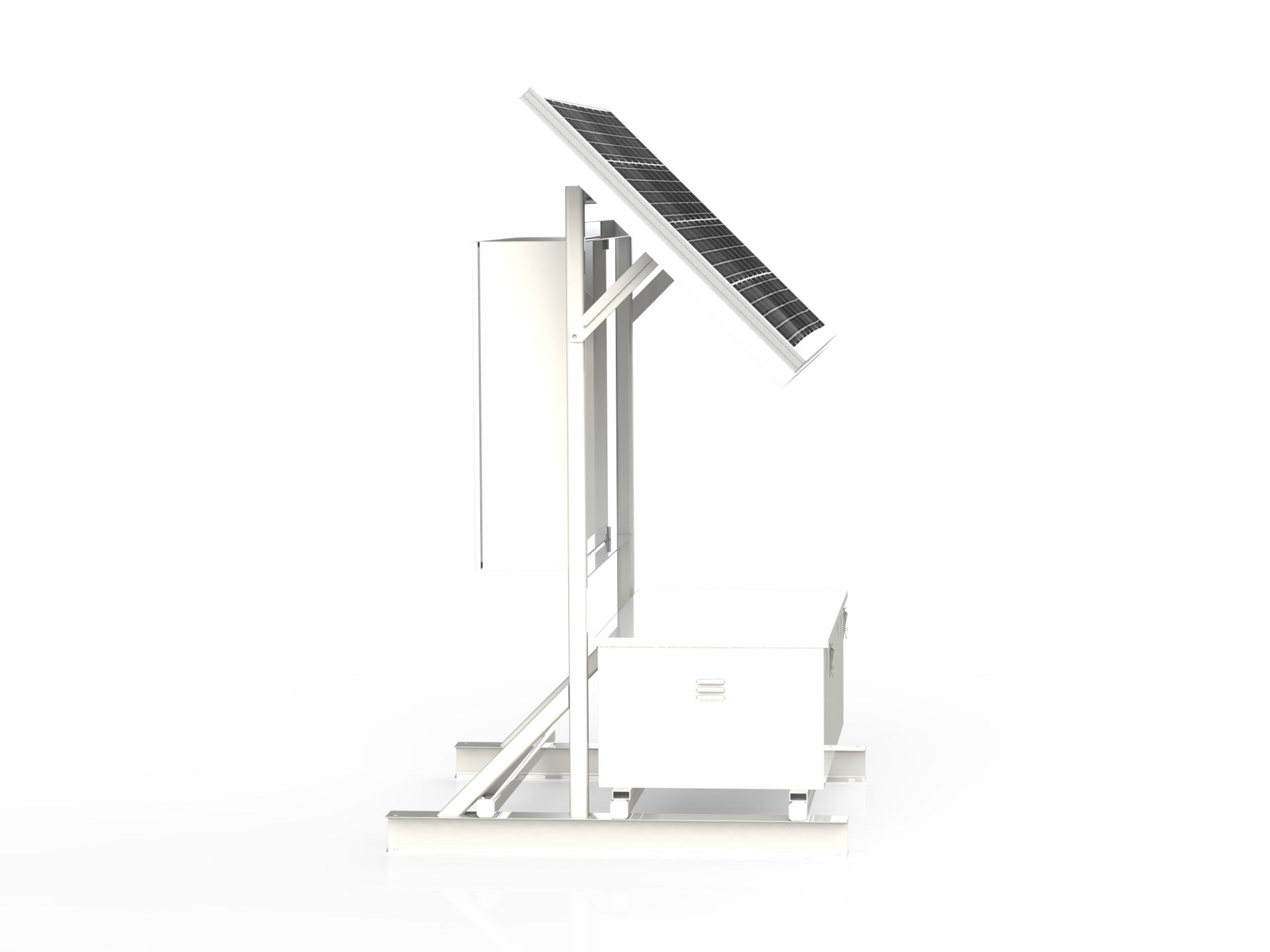

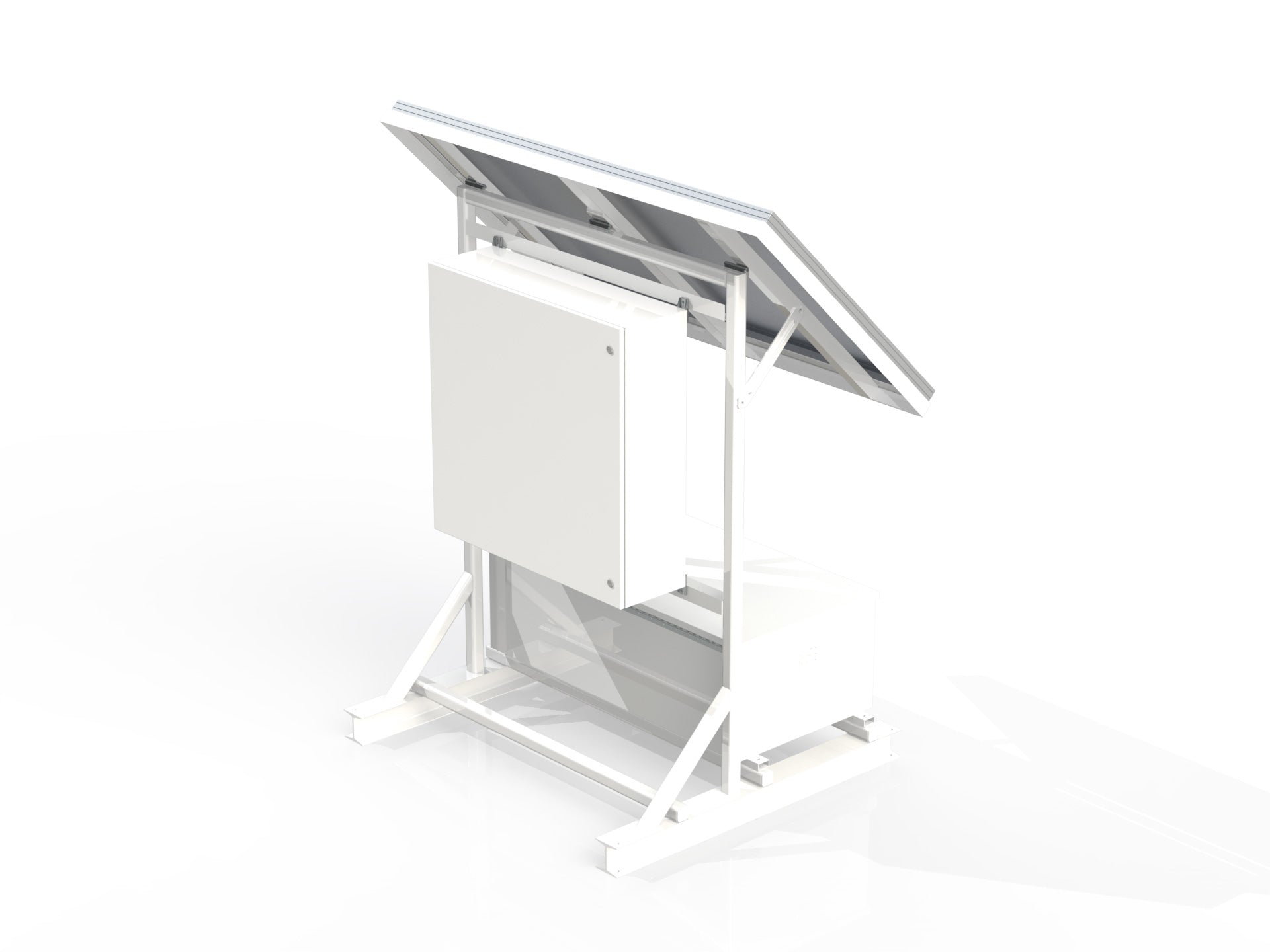

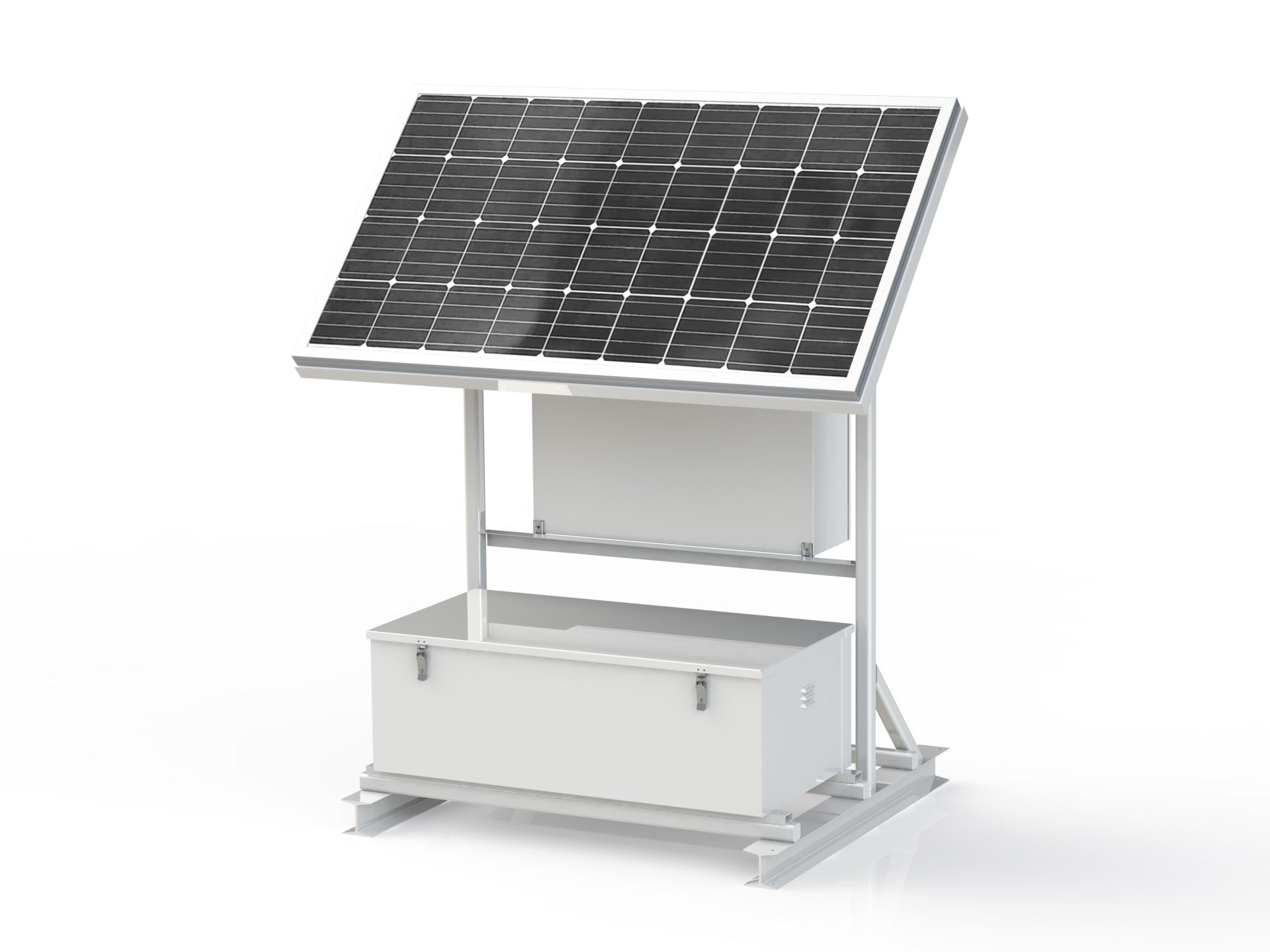

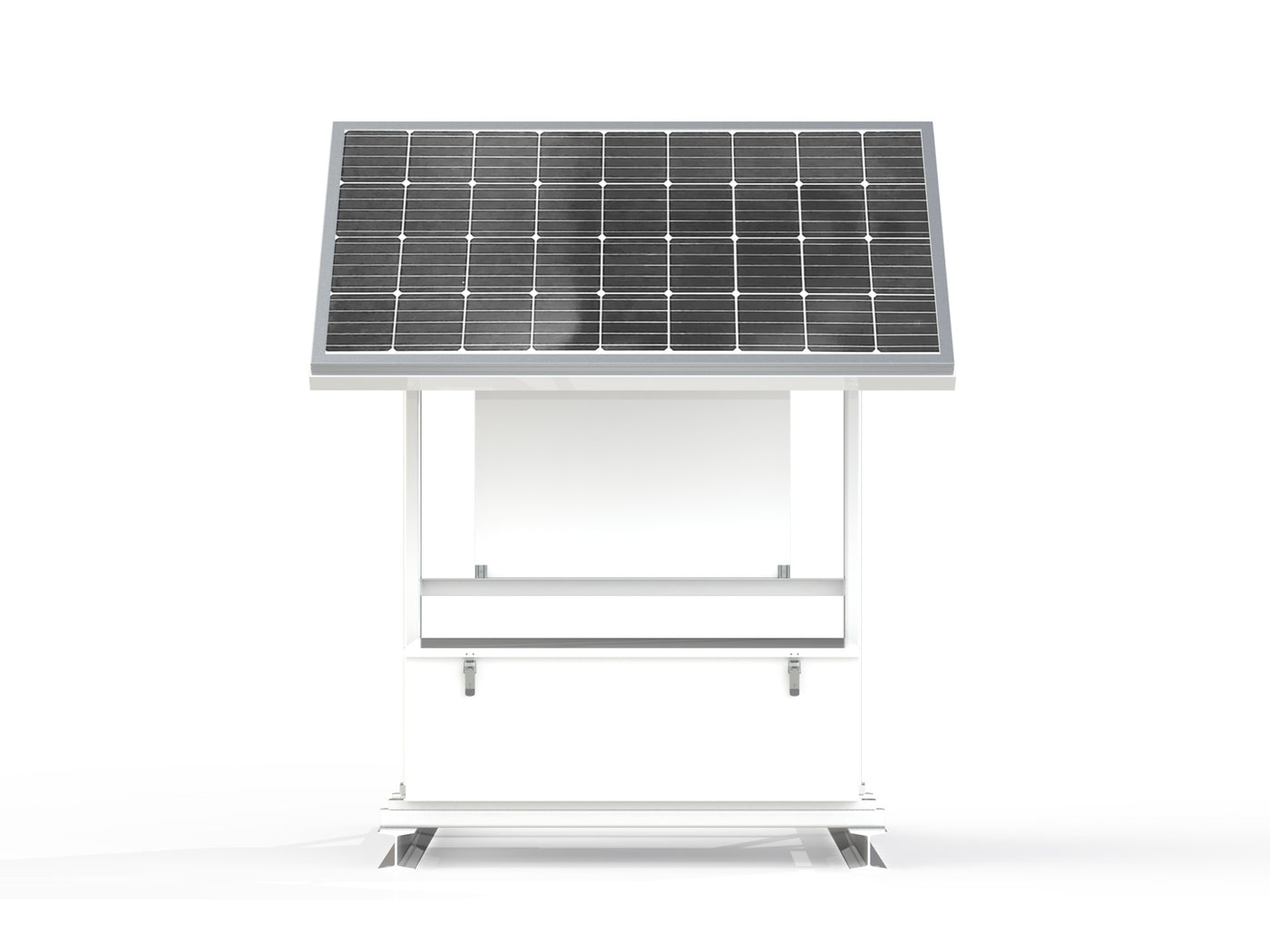

Basic Solar Skid with a 36x36 Control Panel Enclosure mounted on the front and a chest-style battery box mounted on the back. The solar panel can be set in a directly vertical position for transport or can be extended out when in use.

Includes:

  • (10) 110Ah 12V Batteries
  • (1) 395W, 24VDC Solar Panel
  • 25A Solar Charge Controller
  • Power Supply Components included for both direct solar (24VDC) power or 120VAC supply.
  • 36x36x10 Control Panel Enclosure, Padlock capable
  • Allen Bradley 5069-L310ER PLC with I/O cards for 16 DI, 16 DO, 8 AI, & 4 AO
  • ABB TotalFlow XRC G5
  • 8-Port Ethernet Switch, Red Lion DA10 Protocol Converter, & 12-24VDC PoE
