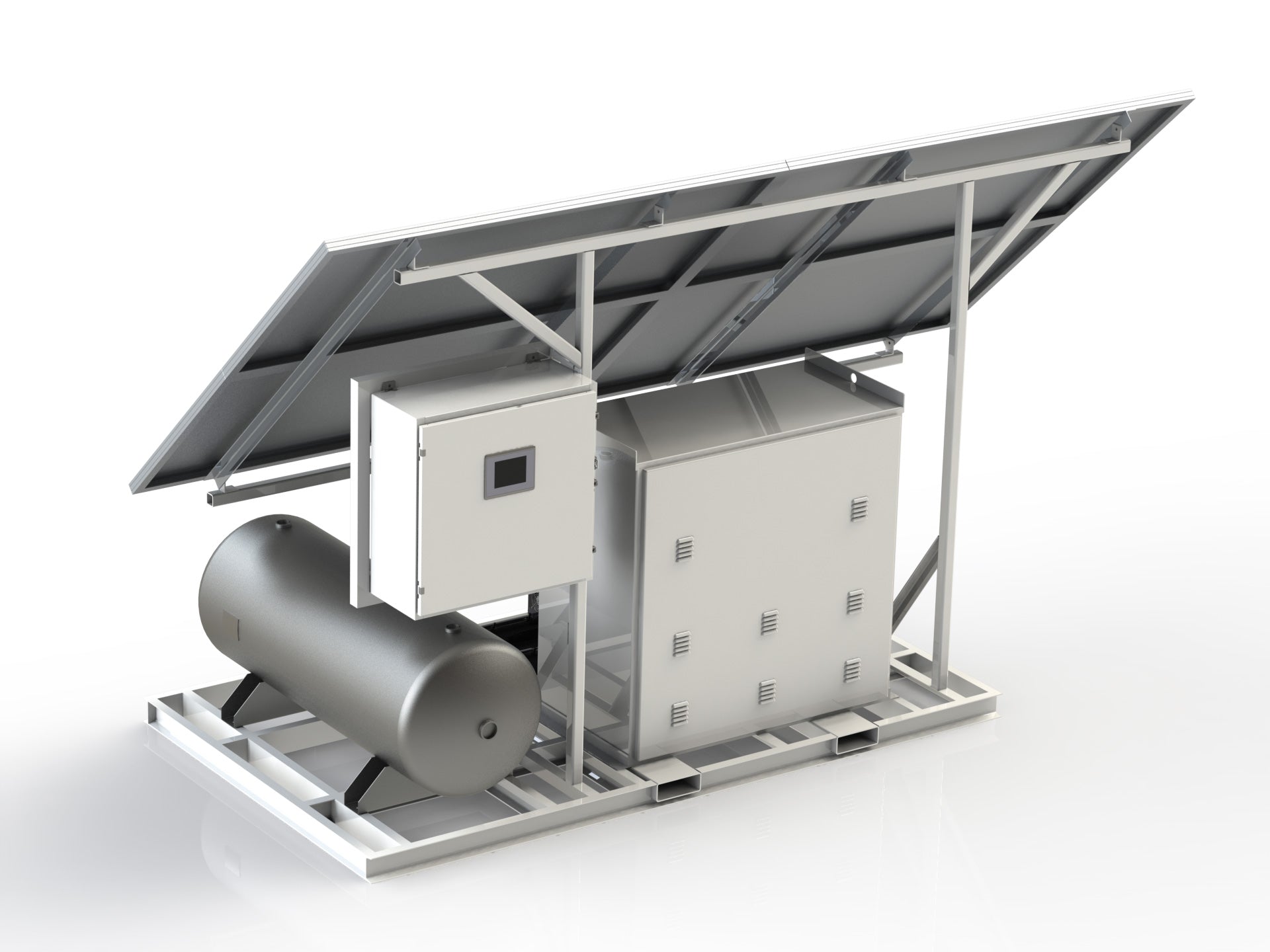

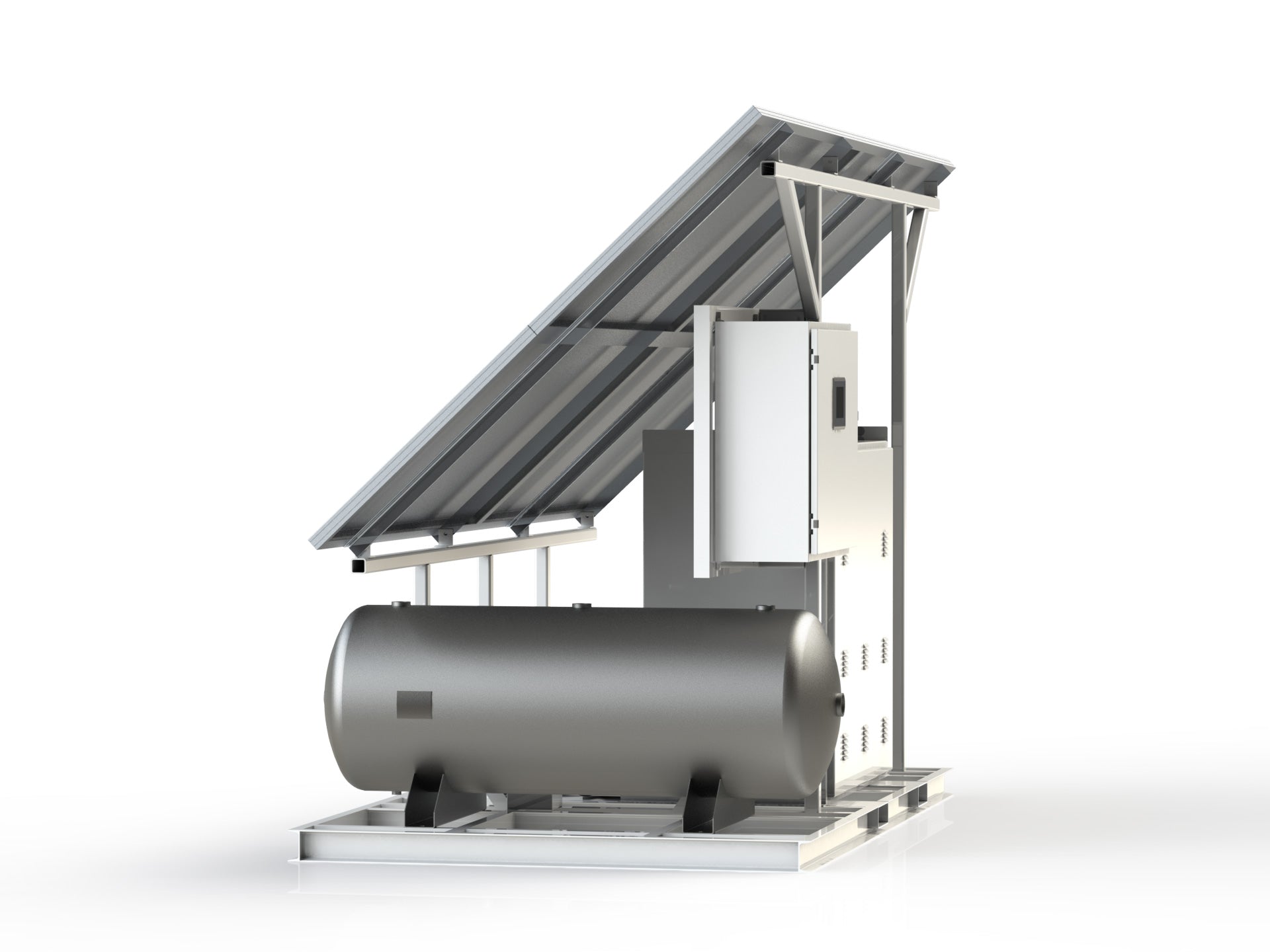

Solar Powered Stand-Alone Air Compressor Skid designed to support your instrument air requirements up to 18CFM @ 100psi.

Overall Skid Dimensions:

154"(L) x 94.5"(H) x 68"(W)

Includes:

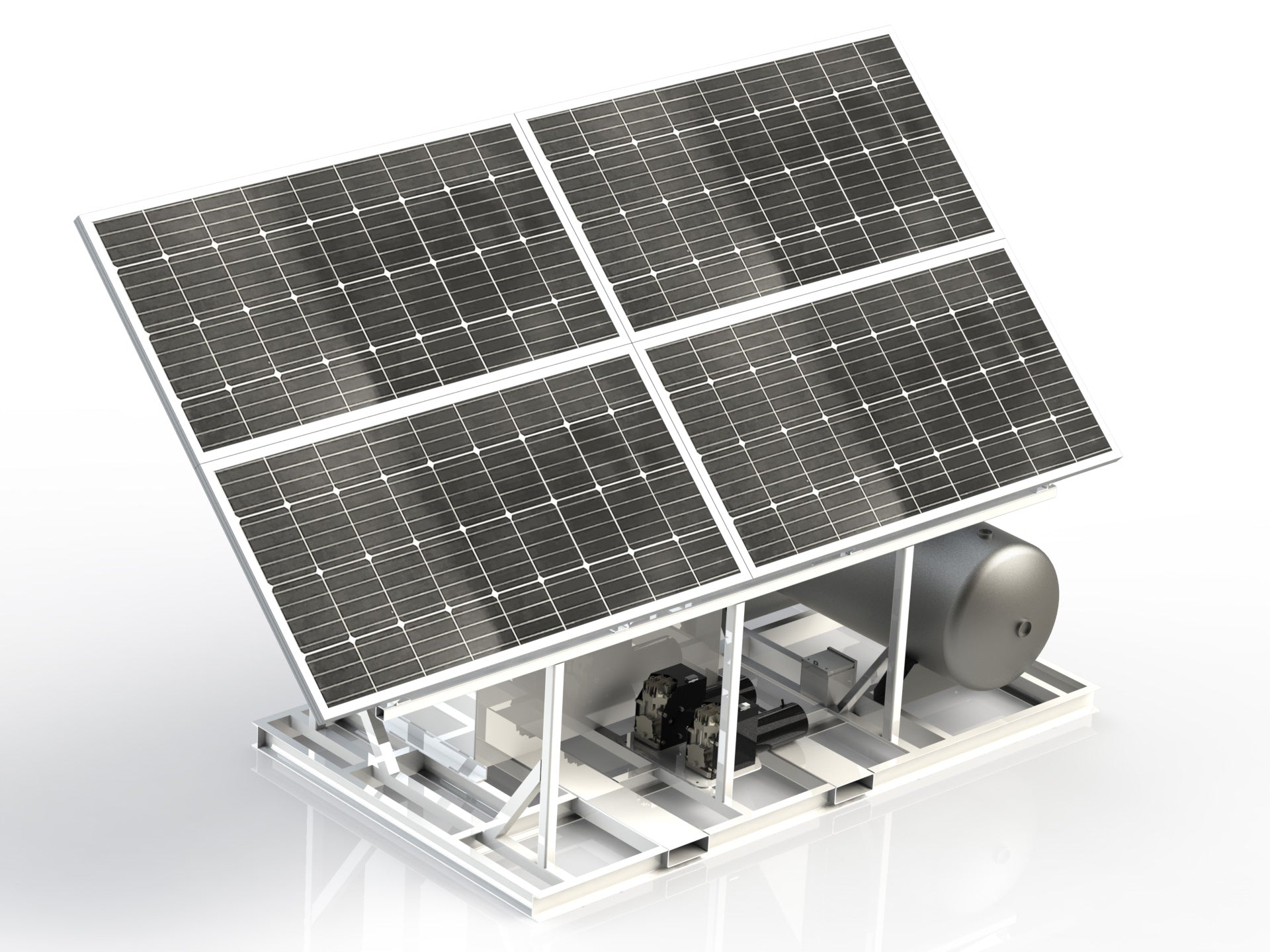

  • 1340 Watts of Solar Supply (4x 335W Solar Panels)
  • 1250 Amp-Hours of Battery Backup (10x 250Ah AGM Batteries)
  • Allen-Bradley CompactLogix PLC ~ Other options available upon request
  • 30x30x10 Main Control Panel complete with 7" HMI
  • 120 Gallon Air Tank

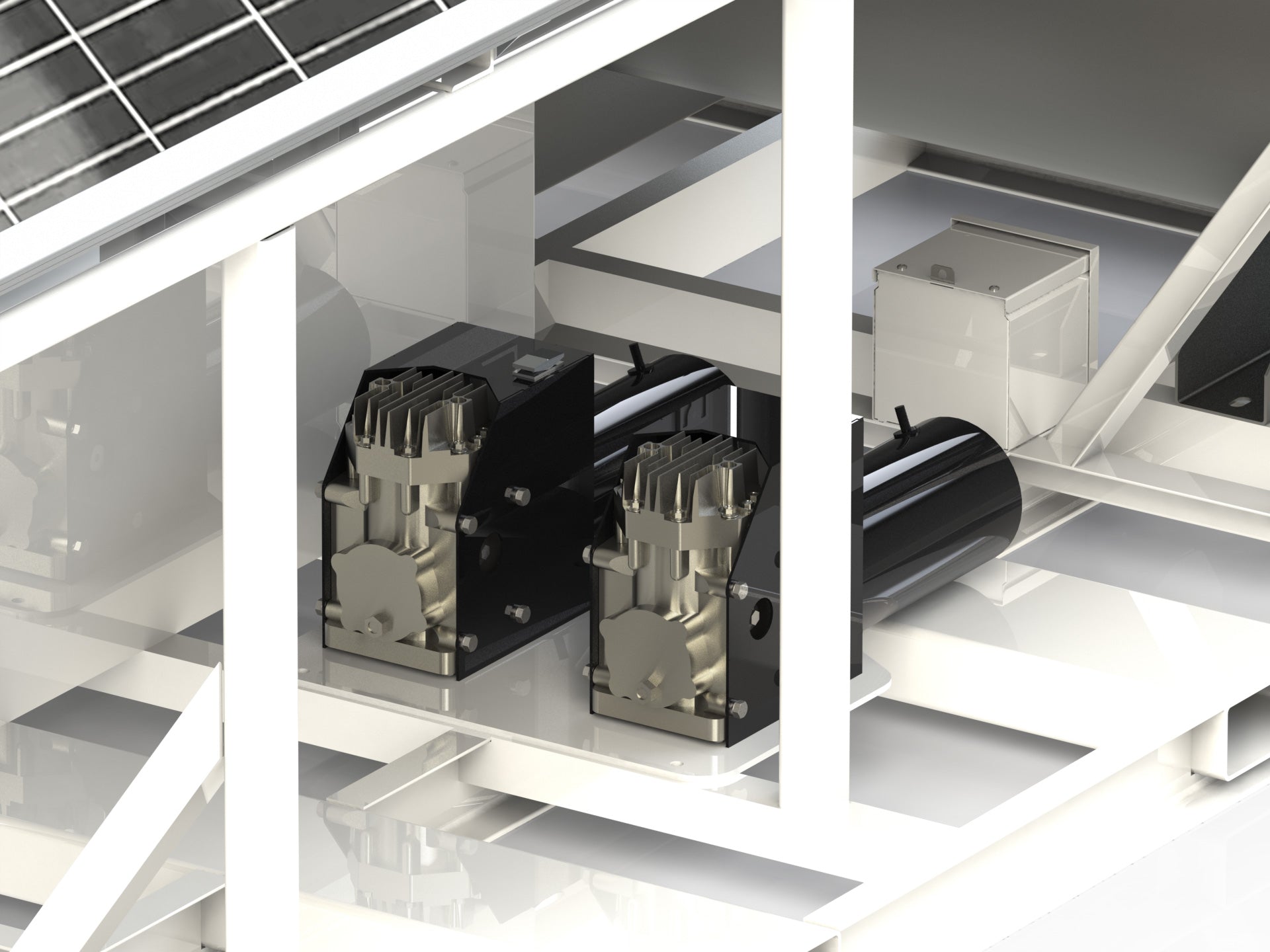

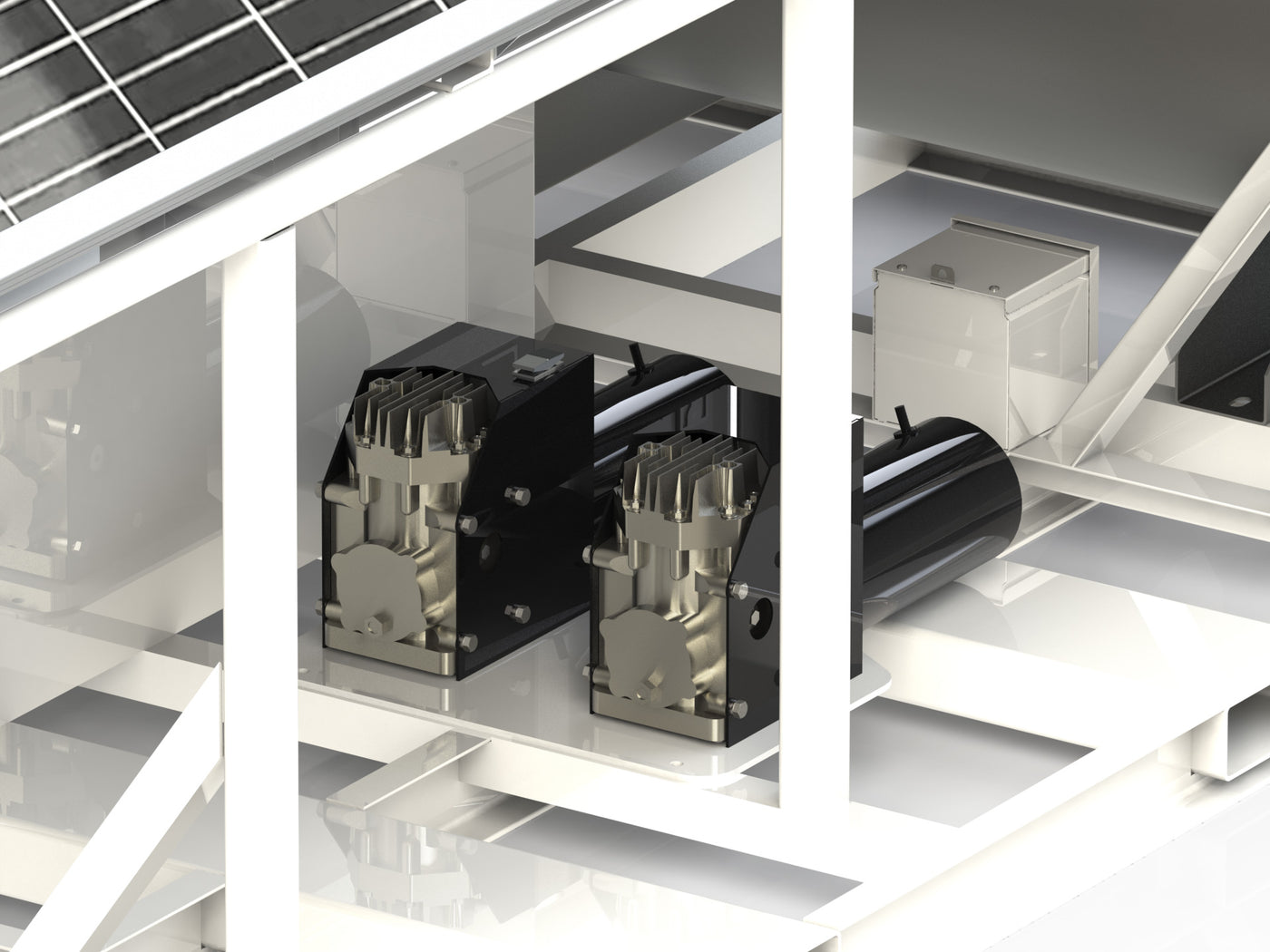

  • Dual Continuous-Duty XDM4000 Air Compressors
